OE number: 2 30 522

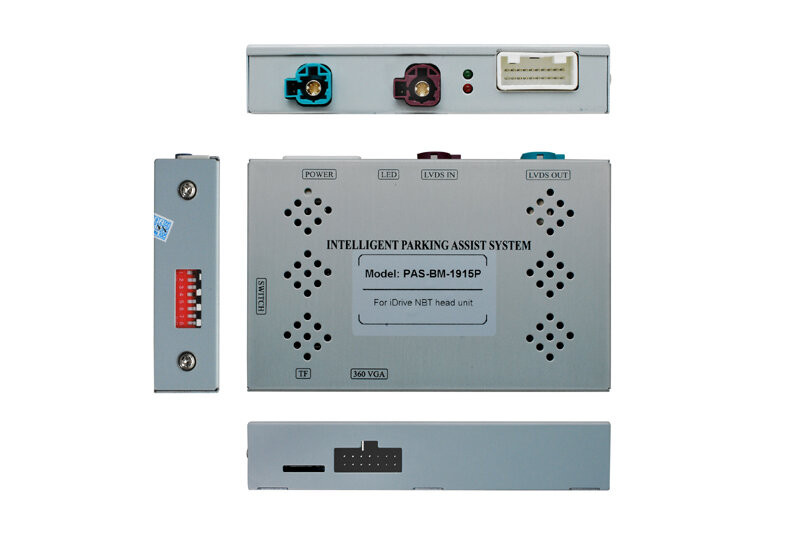

Module for connecting front and rear parking camera for BMW cars with OEM navigation NBT ID4 with 6.5" / 8.8" / 10.25" monitor / 6Pin LVDS connector
Basic functions:
- input for the rear parking camera with automatic activation after engaging the reverse gear
- input for front parking camera or input for video signal (TV tuner, DVD player...)
- video input for DVR camera or TV-tuner, DVD player....
- VGA video input for connecting Apple CarPlay / Android Auto module CP-12 (2,20,995)
- option to display the image behind the vehicle even while driving (only cars with an activation button)
- allows you to display the moving parking guide lines (FPG) for the installed rear parking camera
- supports the display of parking sensors on the display
- can be used for cameras with CVBS, NTSC or PAL video signal
The module supports only video signal. To connect audio signal to OEM unit, use AUX input or FM modulator)
Designed for cars:
BMW 1 [F20][F21] (7/2011-6/2016)
BMW 2 [F22][F23][F45] (4/2014-6/2016)
BMW 3 [F30][F31][F35] (6/2011-6/2016)
BMW 4 [F32][F33][F36] (9/2014-6/2016)
BMW 5 [F10][F11] (2012-2017)
BMW 5GT [07] (2012-2017)
BMW 6 [F12][F13][F06] (2012-6/2016)
BMW 7 [F01][F02] (2012-2017)
BMW X1 [E84] (2012-6/2015)
BMW X3 [F25] (2012-7/2016)
BMW X4 [F26] (7/2012-2016)
BMW X5 [F15] (2012-7/2016)

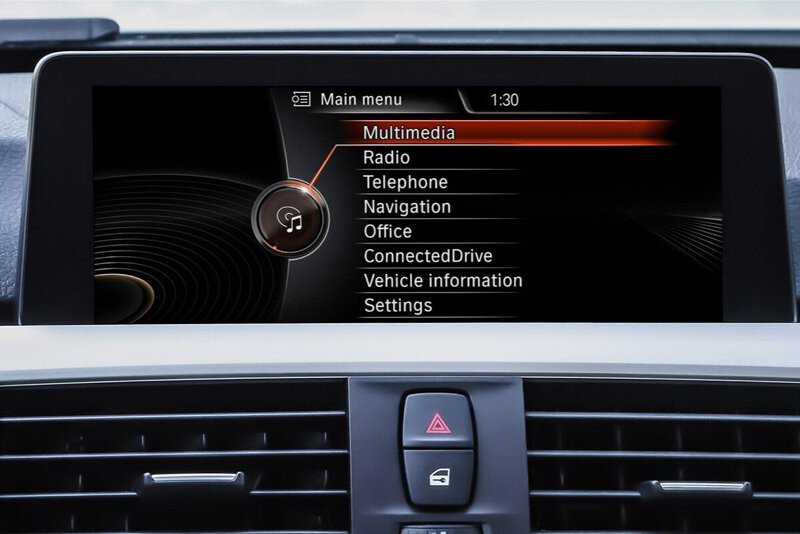

OEM winder NBT ID4 with 6.5" / 8.8" / 10.25" display / 6Pin LVDS connector
The device is intended exclusively for professional assembly by an authorized service or a trained assembly workshop!
Function
Rear parking camera
Front parking camera
Video input
VGA video input
Information about the included return
FPG movable guide lines
PDC display of parking sensors
CVBS / PAL / NTSC camera
