Part number: 5E5827566D - include cable
Weight: 1kg

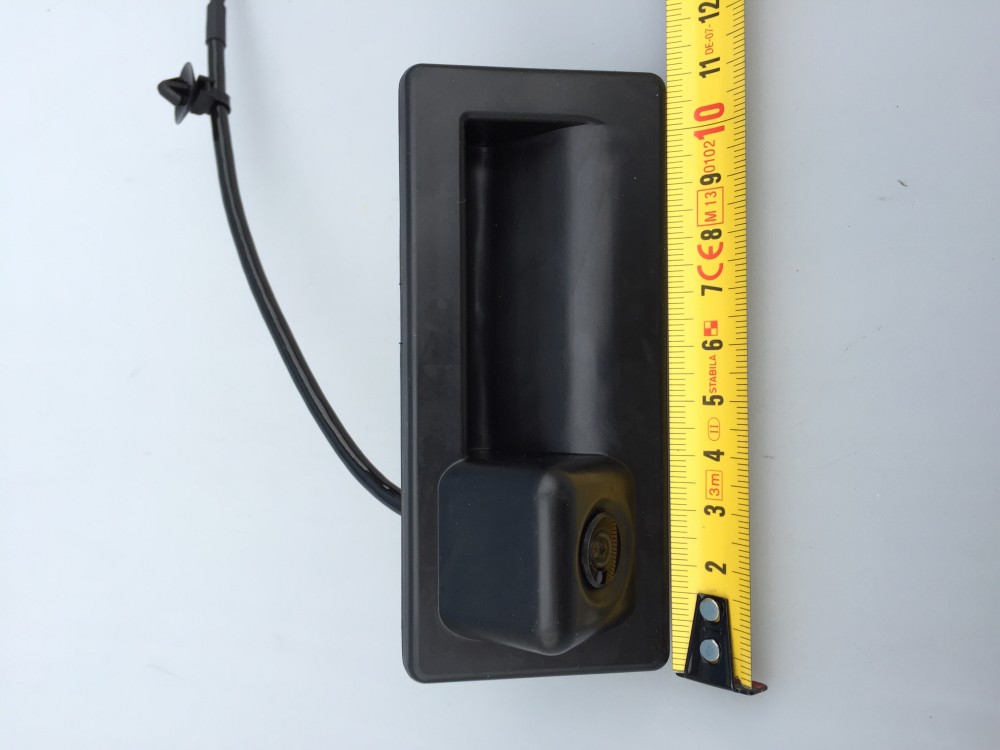

Dimensions / Size: 11X5cm
Connection:
Head unit:
Connector B blue plug.
Video signal - pin 6
Black wire (shield) - pin 12
(Black cable to ground. Rød and Brown to plus. Video cable to Blue connector in quadlock on radio. Pin 6 and 12 low is shield. Code byte 19 bit 4 in 5f to enable, and in 10 check rvc in 2nd or 3rd byte).
Columbus programming:

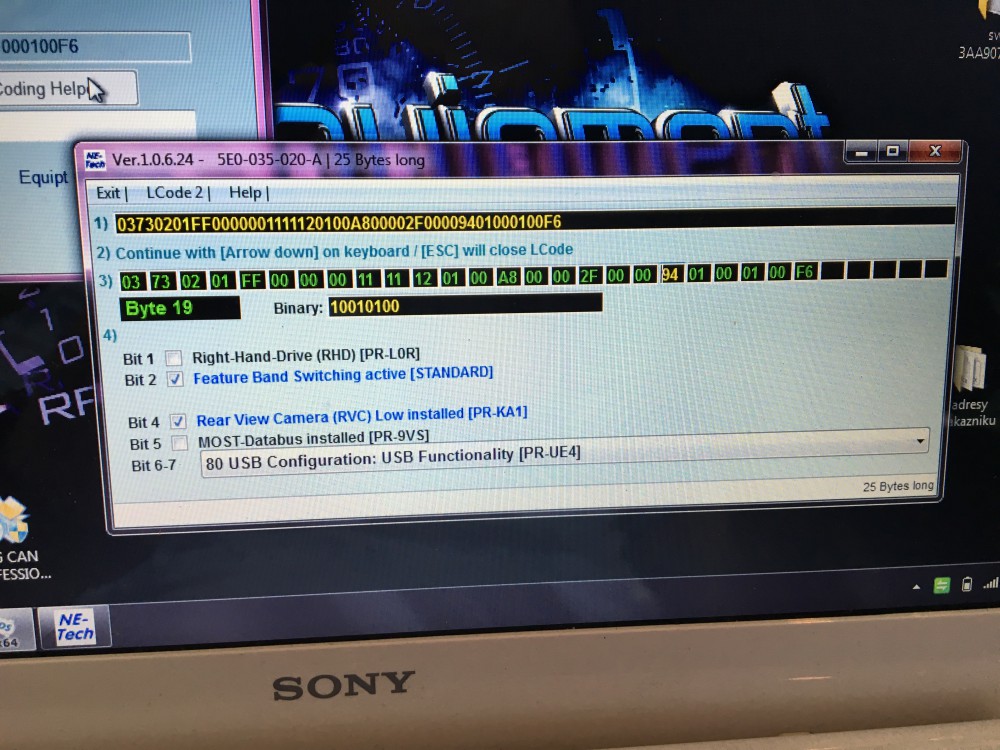

infotainment - 5F
Byte 19 bit 4

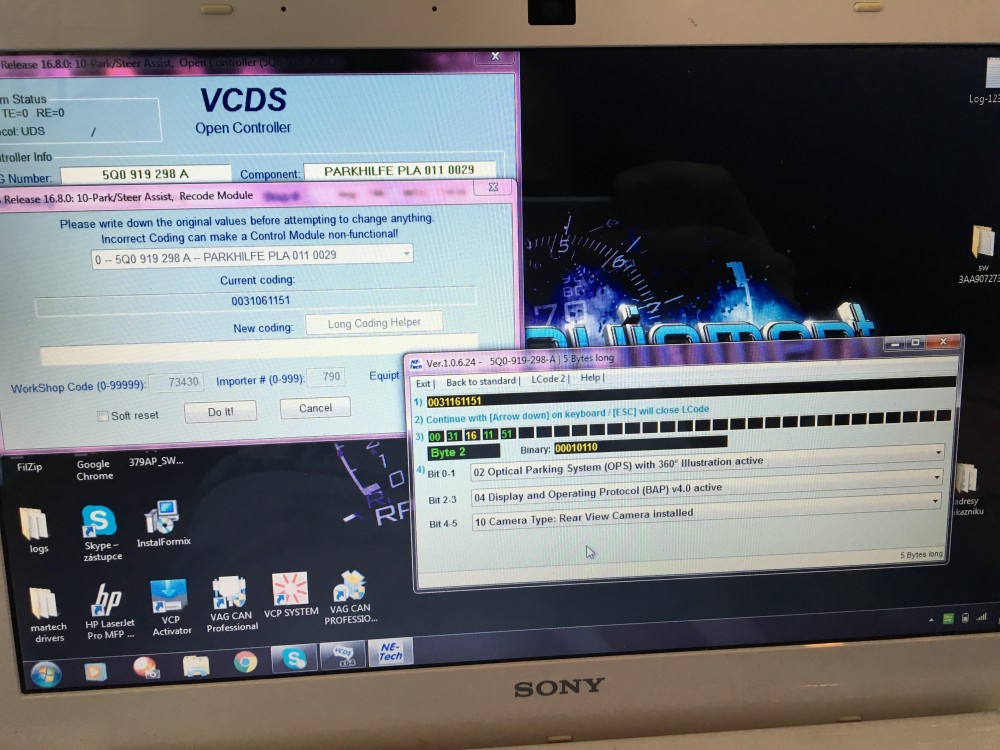

park assist - 10
RVC enabled
Supply:
Brown wire - GND
Black wire is +12V
RED wire is +12V
Suitable for the following radio versions:
* With Navigation Unit
* New Bolero Head Unit
You will receive:

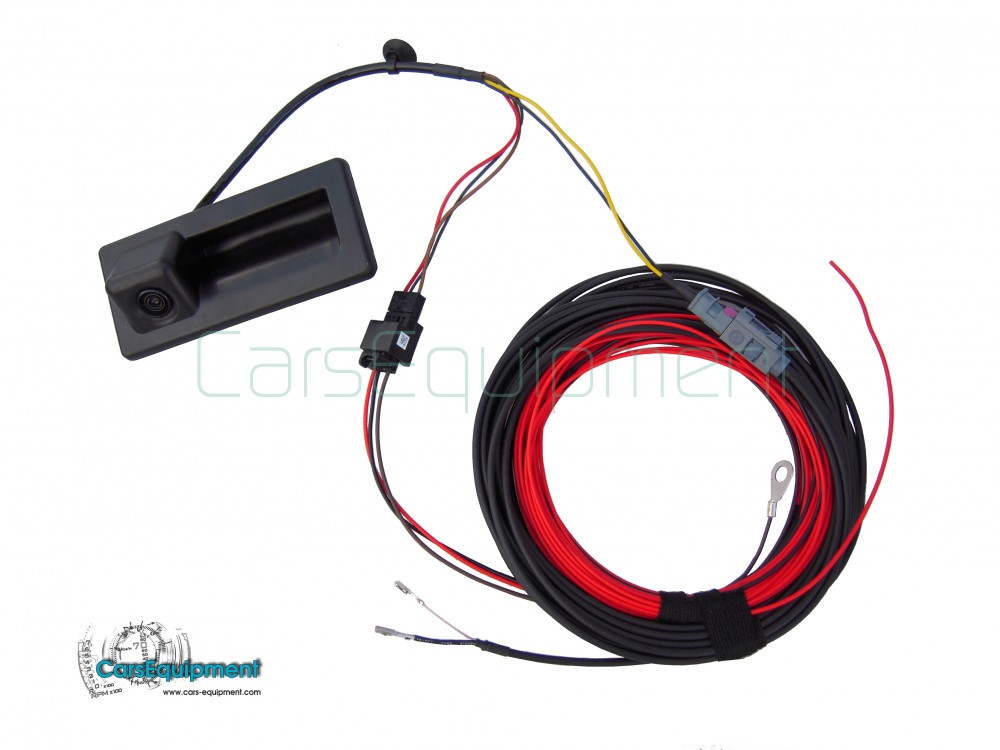

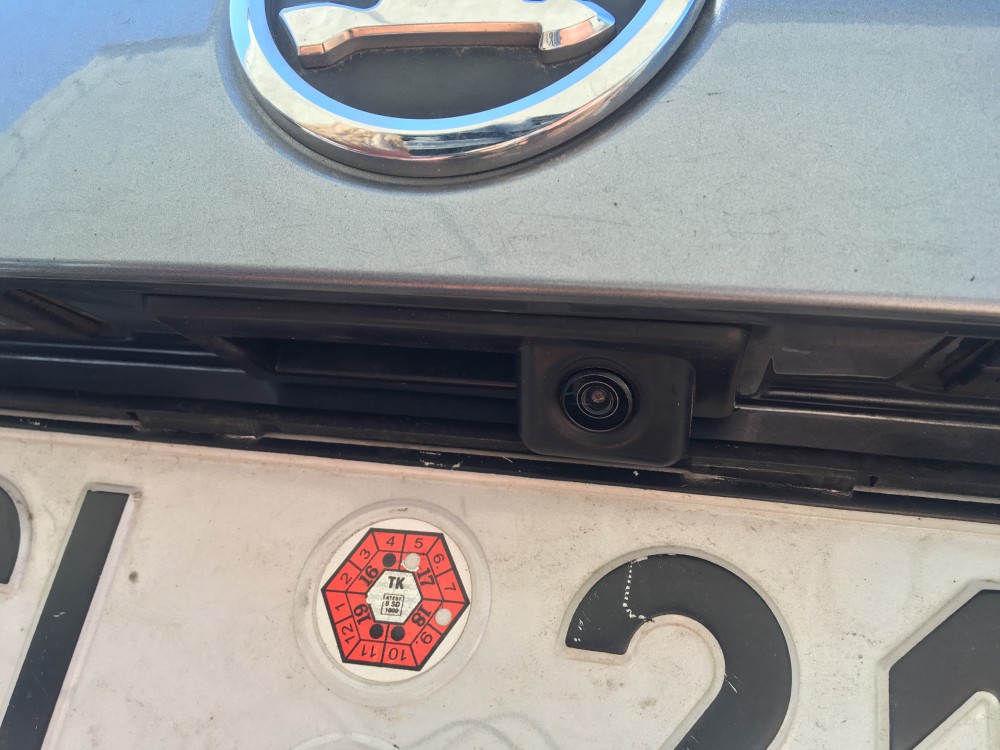

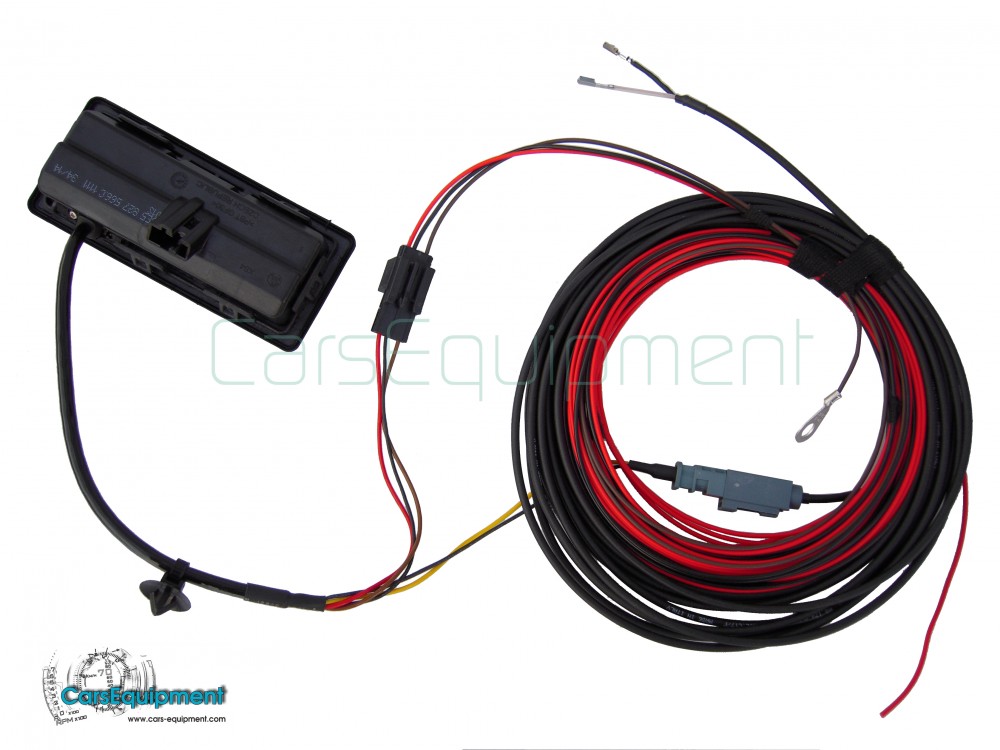

1X Rear view handle camera kit for Skoda Octavia 3 combi and sedan.
