2 21 870 2 CMOS Parking Camera RENAULT Master (10->) / OPEL Movano (14->) / NISSAN NV400 (10->)

CMOS Parking Camera RENAULT Master (10->) / OPEL Movano (14->) / NISSAN NV400 (10->)

OE number: 2 21 870 2

Weight: 0.5 kg

Manufacturer: G-park

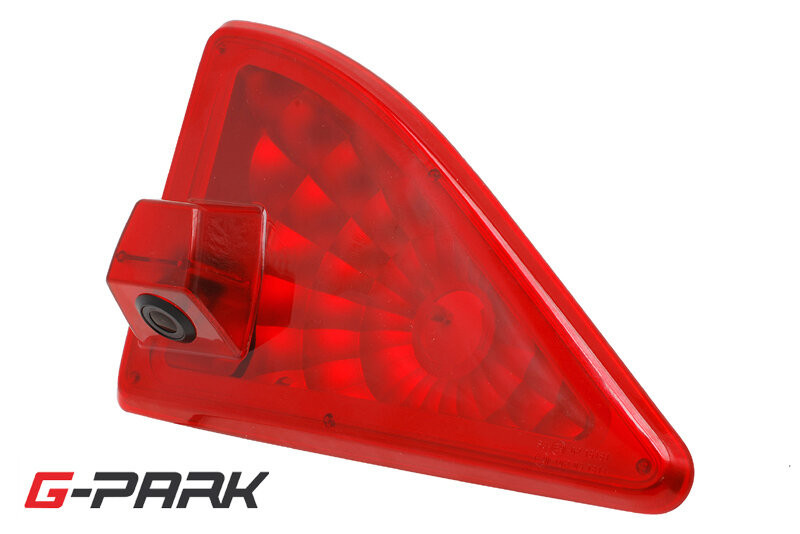

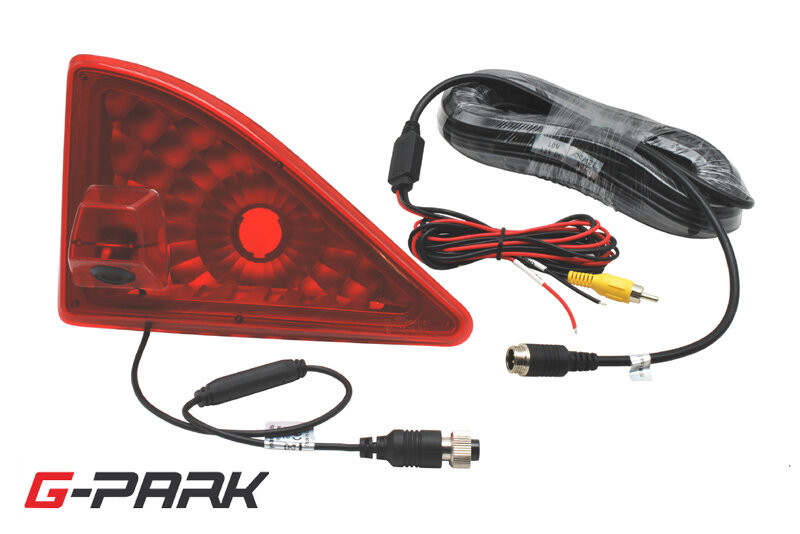

CMOS parking camera integrated in the third brake light installed in the rear wing door.
The brake light function is captured by the original bulb.

Suitable for cars:
RENAULT Master III. [JV][FV] (2/2010->)
RENAULT Master III. Facelift (2020->)
OPEL Movano B (5/2010->)
NISSAN NV400 (11/2011->)

Function
NTSC TV standard
CMOS sensor
RZ lighting with an original bulb

Technical parameters
- CMOS 1/4" sensor chip
- diameter of the built-in lens: 14mm
- TV system: NTSC
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510 x 492
- horizontal resolution: 420 TV lines
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
- weather protection: IP69K

Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
