TPMS 3AA907273H VW, Skoda Tire Pressure Monitoring System KIT - High Version - RDKS

TPMS 3AA907273H VW, Skoda Tire Pressure Monitoring System KIT - High Version - RDKS

Code: TPMS:3AA907273H:KIT
Availability: in stock
Stock: more than 5 pcs
Manufacturer: VW AG
Price without VAT: 314.05 €
Price: 380.00 €
Weight: 1300 g
Quantity:

Weight: 1,3kg

Part number:

Controler: 3AA907273H

Sensor: 3AA907275F

Ventils: 4D0601361

Bracket: 3AA907538



Complete set for the retrofit of the original Tire Pressure Monitoring System - Version High

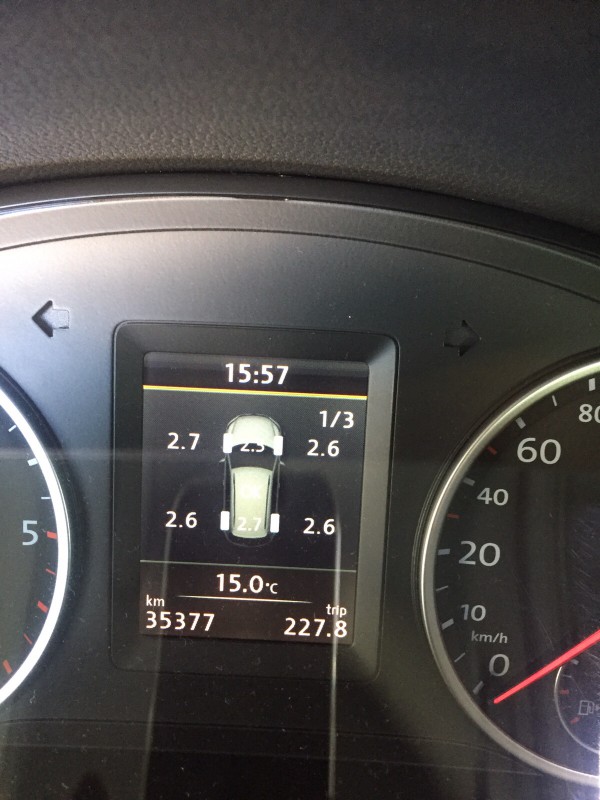

Pressure display of every single wheel within the driver Information system



Fit cars:

VW Passat CC, B7, Tiguan, Touran, Sharan, Cady, Jetta, Golf V, Golf VI

Škoda: Octavia 2, Yeti, Superb 2



You will receive:

1X Control unit 3AA907273H

4x wheelsensor 3AA907275F + 4D0601361

1X Wiring

1X Bracket: 3AA907538





Notes

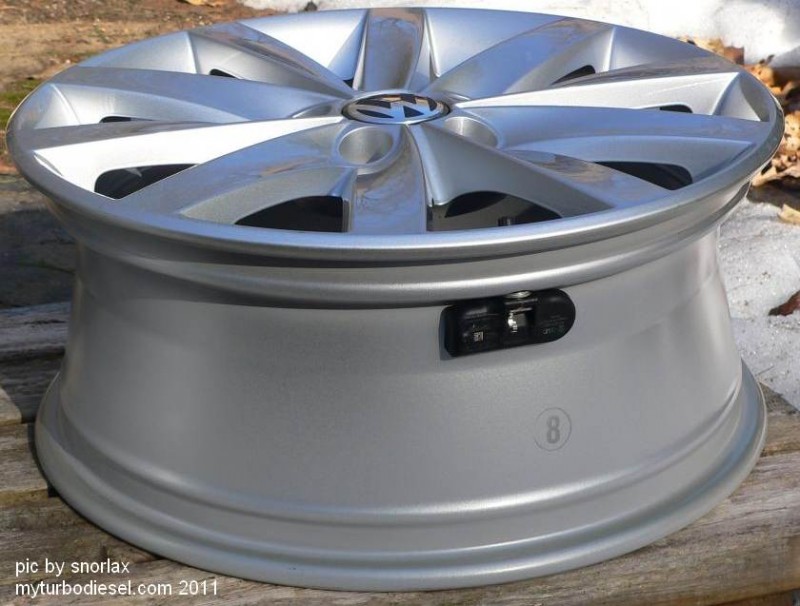

* The wheel sensors have to be fitted in the rim by a workshop

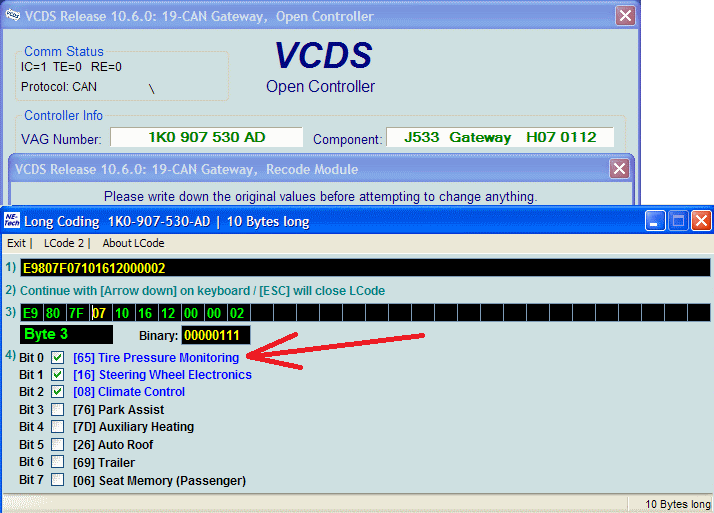

* After fitting the vehicle requires coding. Please get in contact with a local dealer

* Gateway controler 7N0907530Q, AS or similar version support tire pressure monitoring required





Installation manual:

 http://jimmy-cbx.blogspot.sg/p/tire-pressure-monitoring.html



Connection: 4X wire

+12V

GND

CAN High

CAn Low



Gateway         TPMS controler

Pin 7 CAN High     >     Pin 1
Pin 17 CAN Low    >     Pin 3
Power 12v           >     Pin 2
Ground               >      Pin 4
