Manufactured from high-quality materials, the tow bar has undergone load tests as well as rigorous testing for strength and resistance to corrosion. The tow bar complies with homologation E1 55R-01 2601 and all Czech and international regulations. Please refer to the Owner‘s Manual for detailed instructions on how to use the ball hitch. Retrofitting a tow bar to your vehicle increases the demand on its cooling system. As a result, depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised ŠKODA AUTO specialist service centres or available in B2B.
* The time units specified for the fitting time serve only as a guide and are dependent on the equipment specification (five-seater, seven-seater).
Specification of product:
Material: High-quality steel
Color: Black
Dimensions: 1390 x 690 x 250 mm

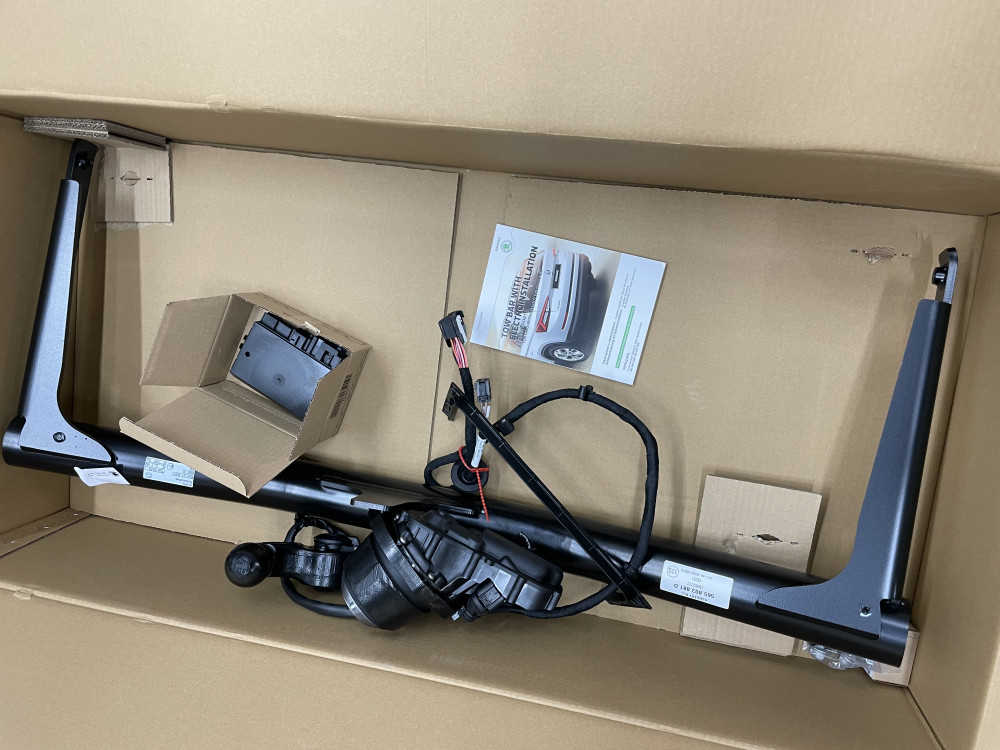

Set contents: Complete tow bar set, control unit, switch, frame, connecting materials, fitting instructions
Technical specifications:
See the vehicle‘s Owner‘s Manual for the maximum trailing load (braked/unbraked) and maximum bearing load.
For fitting, the following items must be ordered from the ŠKODA Genuine Parts catalogue:
Aerial for the virtual pedal (if fitted) (1) / 565 962 235
Switch cover – for the five-seater variant (1) / 565 868 345A 9B9
Switch cover – for the seven-seater variant (1) / 565 868 345 9B9
Support – for the seven-seater variant (1) / 565 867 993
Double-sided adhesive tape (1) / D 438 515 A1
Activator (1) / D 822 150 A1
Adhesive (1) / D 001 210 M2
- for vehicles not set up for a tow bar, additionally:
Wiring harness for vehicles not set up for a tow bar / 565 971 658F
Associated products:
Adapter (from the 13-pin to the 7-pin socket) / EAZ 000 001A
Designed for:
Exclusively for the basic model of the ŠKODA KODIAQ (NS). Not available for seven-seater vehicles with TDI engines with manual transmission. Cannot be used for vehicles exported to Australia
