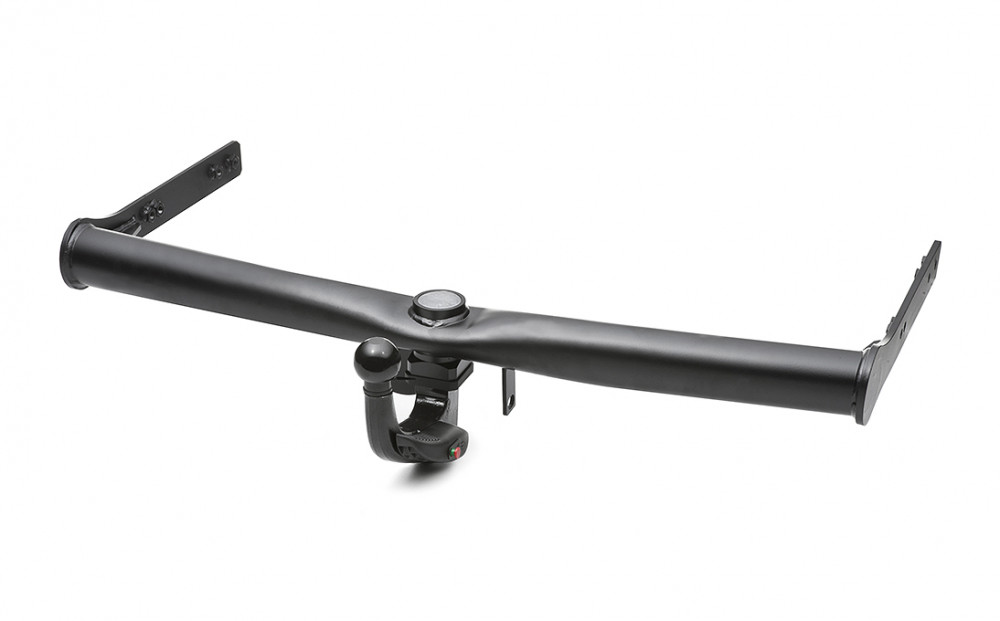

When nothing more fits inside your car or on top of its roof, it’s time for a tow bar. The arm with tow ball can be installed and removed easily, and it can be used for towing trailers of up to 500kg (unbraked) or 1,200kg (braked). However, the maximum load differs depending on the model of the car, where it’s fitted. The maximum allowed weight can be found in the cars documentation.
The tow ball’s maximum vertical load is 50kg, the D-value is 7,2kN. The set includes fixing material and tow coupling for the trailer. Replacement parts for the set can be ordered from ŠKODA Genuine Accessories. A 13-pin socket needs to be ordered with the set (only for cars from CW13/2010). Product is not available for cars with rear bumper spoiler. Matches E55 homologation.
Basic solutions for electrical installation can be ordered under following numbers:
5J1 055 316 C for cars without tow bar preparation
Comfort solution of electrical installation, which is able to communicate with other in-car electronic systems and supports diagnostics, can be ordered under following numbers:
5J1 055 316 for cars without tow bar preparation (from CW 22/2011)
5J1 055 316 D for cars without tow bar preparation (from CW 22/2011)
5J0 055 316 for cars with tow bar preparation
Material: Metal
Weight: 15,1 kg
Designed for cars: Fabia II (produced from 2006 to the present) - not available for Scout, RS and Monte Carlo
Notice:
We recommend a professional installation service partners at ŠKODA AUTO accordance with the approved installation instructions. The installation you consult with your partner at ŠKODA AUTO.
