OE number: 2 21 842 2
Weight: 0.5 kg
Manufacturer: G-Park

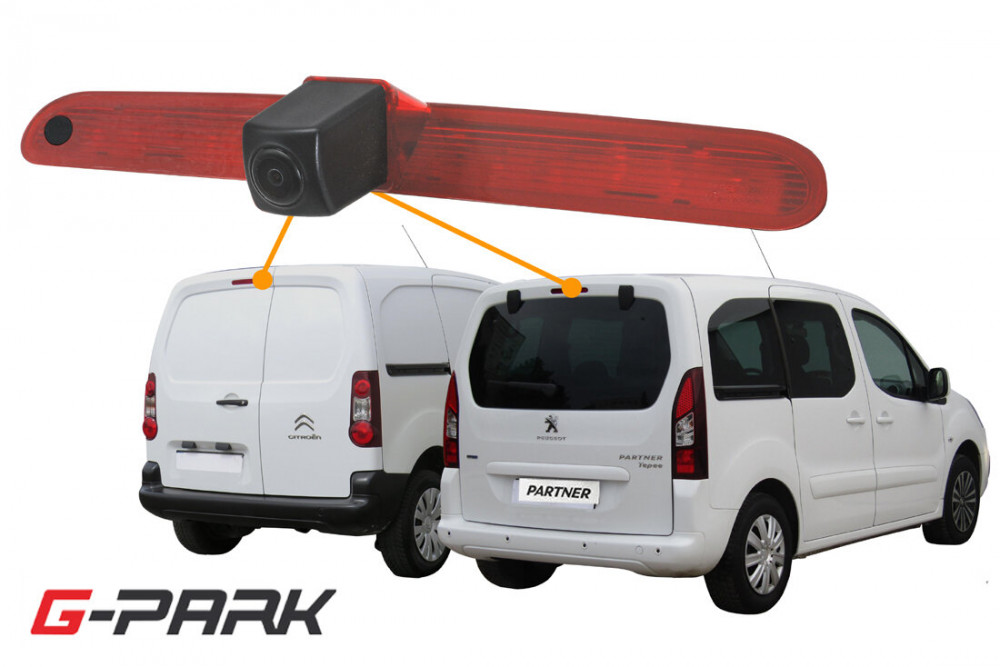

CCD parking camera integrated in the third brake light installed above the rear wings with LED.
Suitable for cars:
PEUGEOT Partner II. (4/2008-8/2018)
CITROEN Berlingo (4/2008-8/2018)
cars with hinged or hinged doors

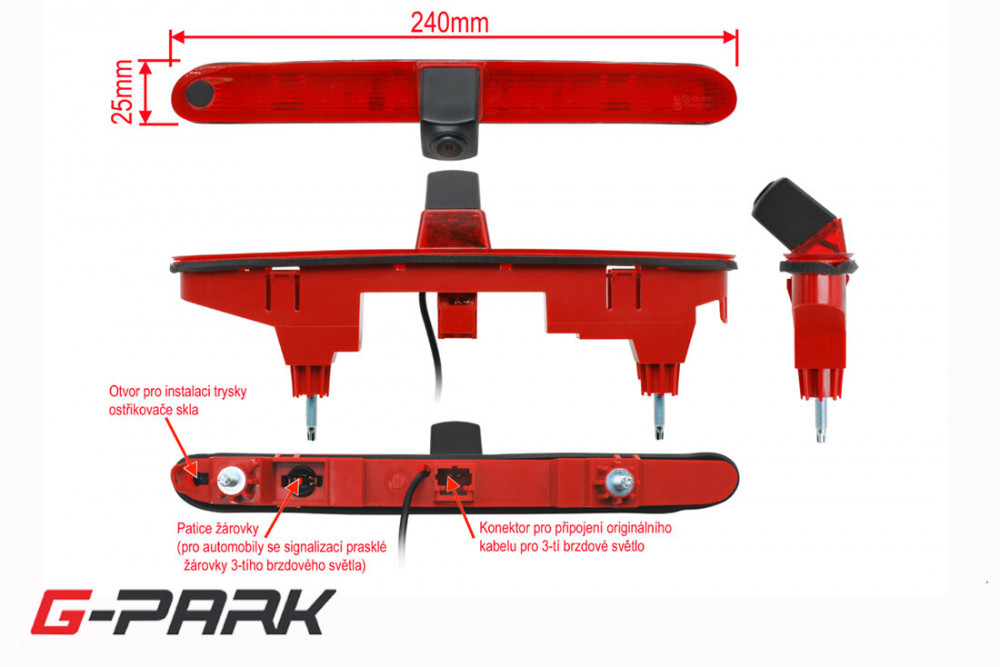

A hole with a cover for the location of the rear window washer, if the car is equipped with one.
The bulb socket on the back is used to place the bulb for cars with a blown bulb check.
Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin narrow
- connector on the monitor side: CINCH (RCA)
- camera cable length: 2.5m
- length of the cable in the cable harness: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
Installation in a car:
The camera is integrated in the third brake light located in the rear door, which replaces the original brake light. Light signaling is ensured by the original LED light, the module with LED illumination must be removed from the original light and placed in the installed light with the camera.
In cars with an installed rear window washer, it is necessary to remove the washer nozzle and install it in the prepared hole in the new light. In cars without a washer, the opening is protected by a cover.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CCD sensor
