OE number: 2 21 959 2VT
Weight: 0.5 kg
Manufacturer: G-Park

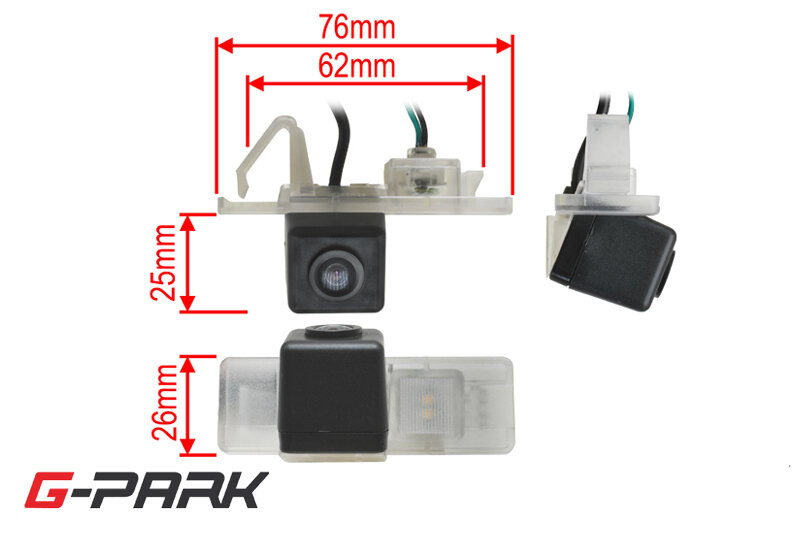

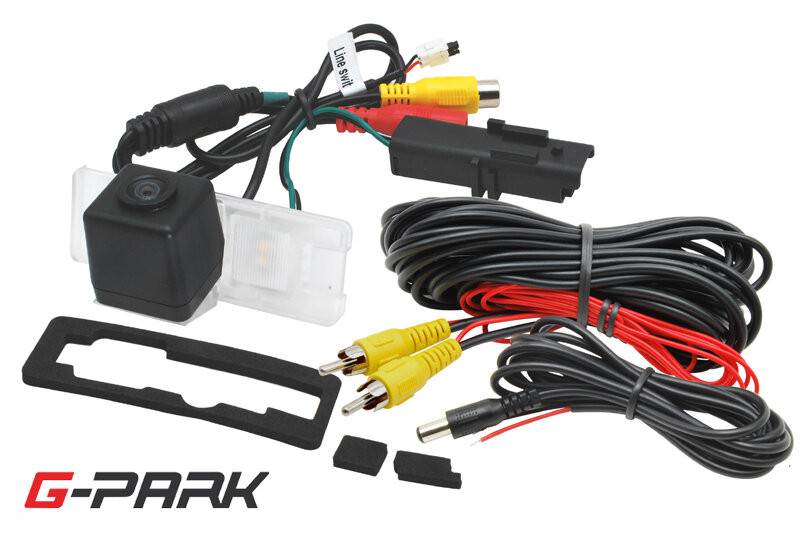

CCD parking camera for installation in place of the rear license plate light. The camera includes a connector for connecting the license plate lighting power supply.
Suitable for cars:
CITROËN C2
CITROËN C4
CITROEN C5 (2008->)
CITROËN C6
CITROËN C8
CITROEN Jumpy (2007-> - *
CITROËN Evasion
PEUGEOT 106 II. (1996-2007)
PEUGEOT 1007
PEUGEOT 307 Hatchback
PEUGEOT 307CC
PEUGEOT 308
PEUGEOT 308CC
PEUGEOT 406
PEUGEOT 407 Saloon
PEUGEOT 408
PEUGEOT 508
PEUGEOT 607
PEUGEOT 806
PEUGEOT 807
PEUGEOT RCZ
PEUGEOT Expert II. (2007->) - *
* - only for cars with hinged rear doors
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
LED lighting RZ
