2 21 854 CCD Parking Camera CITROEN Jumpy, Peugeot Expert, Toyota Proace

CCD Parking Camera CITROEN Jumpy, Peugeot Expert, Toyota Proace

OE number: 2 21 854

Weight: 0.5 kg

Manufacturer: G-Park

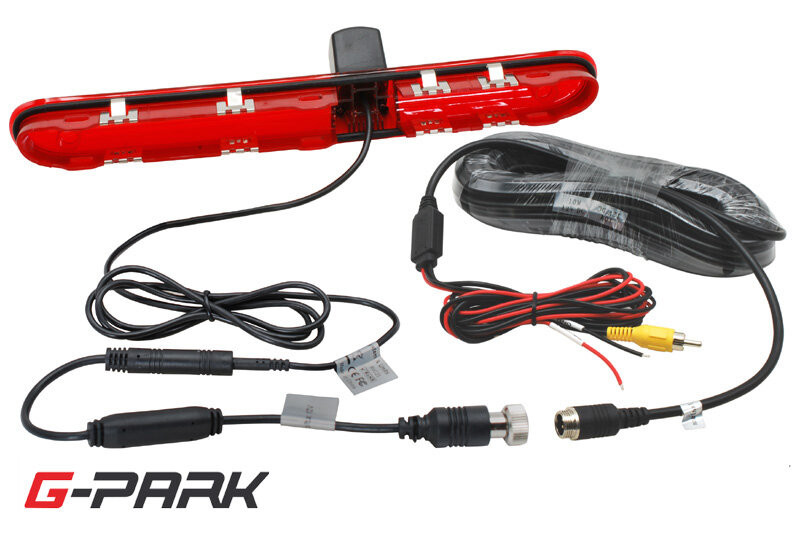

CCD parking camera integrated in the third brake light installed above the rear fenders.

Suitable for cars:
CITROEN Jumpy (2016->)
CITROEN Space Tourer (2016->)
PEUGEOT Expert [K0] (2016->)
PEUGEOT Traveler [K0] (2016->)
TOYOTA Proace (2016->)
TOYOTA Proace Verso (2016->)

Technical properties:
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin narrow
- connector on the monitor side: CINCH (RCA)
- camera cable length: 1.5m
- length of the signal cable in the cable bundle: 1.5+5m
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C

Installation in a car:

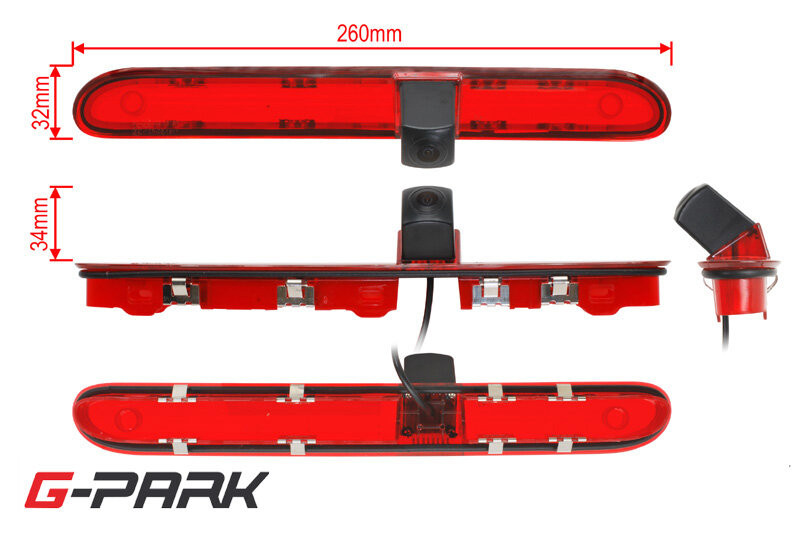

The camera is integrated in the third brake light located in the rear door, which replaces the original brake light. Light signaling is ensured by the original LED light, the module with LED illumination must be removed from the original light and placed in the installed light with the camera.

Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs

Function
NTSC TV standard
CCD sensor
