OE number: 2 21 852
Weight: 0.5 kg
Manufacturer: G-Park

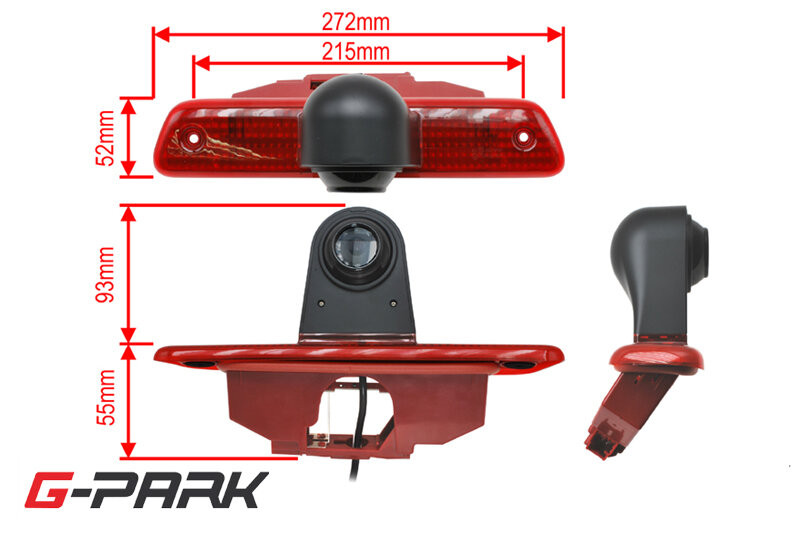

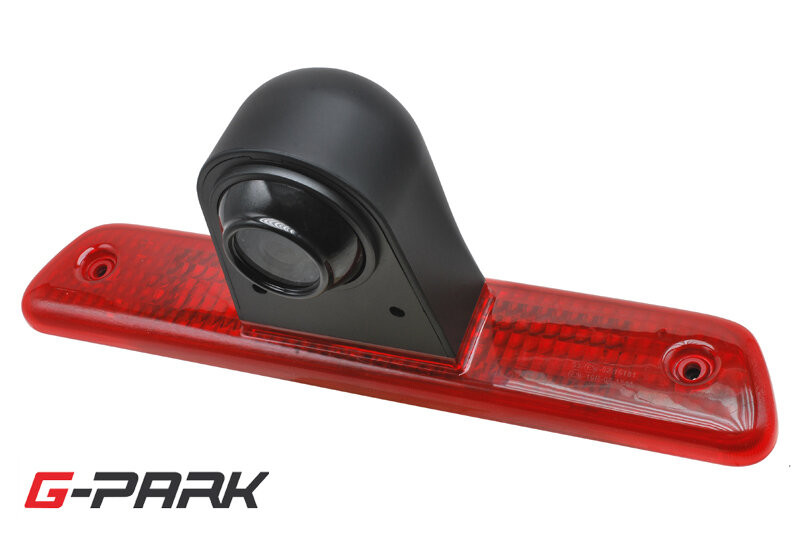

CMOS parking camera integrated in the third brake light installed above the rear fenders.
Suitable for cars:
CITROEN Jumpy (2007-2016)
FIAT Scudo (2007-2016)
PEUGEOT Expert (2007-2016)
TOYOTA Proace (2013-2016)
Installation in a car:

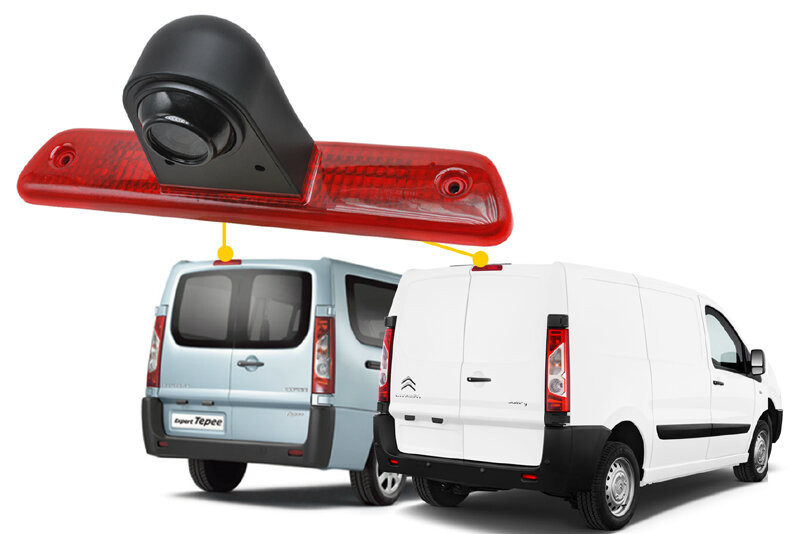

The camera is integrated in the third brake light located in the rear door, which replaces the original brake light. Light signaling is ensured by the original LED light, the module with LED illumination must be removed from the original light and placed in the installed light with the camera.
Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs
Function
NTSC TV standard
CMOS sensor
Technical parameters
- CMOS 1/4" sensor chip
- IR lighting with 9 LEDs (night vision)
- TV system: NTSC
- built-in lens: aperture 2.8mm
- scanning angles: 120°(D) / 95°(H) / 70°(V)
- mechanical camera tilt adjustment: +/-45°
- video output: 1.0V /75Ohm
- weather protection: IP69K
- vibration resistance: 10G
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- backlight compensation: automatic
- minimum lighting: 0LUX (illumination by infrared LEDs)
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- cable length: 10m
