OE number: 2 21 958 VT
Weight: 0.5 kg
Manufacturer: G-Park

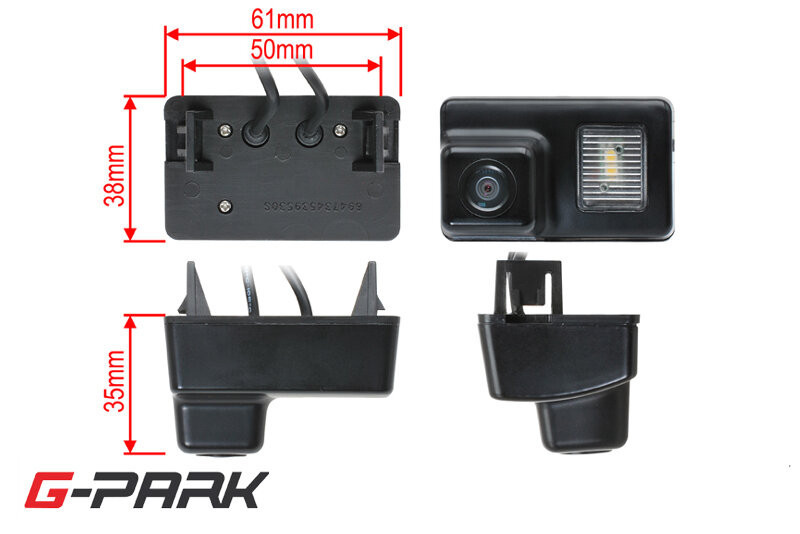

CCD parking camera for installation in place of the rear license plate light. The camera includes an integrated LED light that replaces the original license plate light.
Suitable for cars:
CITROËN C5 (->2008)
CITROEN Berlingo
CITROEN Saxo
CITROEN Xsara
PEUGEOT 206
PEUGEOT 207 (08->)
PEUGEOT 307SW (station wagon)
PEUGEOT 308 CC
PEUGEOT 308 SW (station wagon)
PEUGEOT 406 SW (station wagon)
PEUGEOT 407 SW (station wagon)
PEUGEOT 5008
PEUGEOT Partner
The camera allows trajectories (guidelines) to be displayed or hidden. The function is activated when the jumper in the cable harness at the camera is inserted.
Technical properties:
- CCD 1/4" sensor chip
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 480
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -30°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
Function
NTSC TV standard
CCD sensor
LED lighting RZ
Adjustable guide lines (trajectories)
