Code: 2 21 858

2 21 858 CCD Parking Camera IVECO Daily IV. (11-14) / Daily V. (14->)

Availability: in stock
Stock: more than 5 pcs
Manufacturer: G-Park
Price without VAT: 94.21 €
Price: 114.00 €
Weight: 500 g
Quantity:

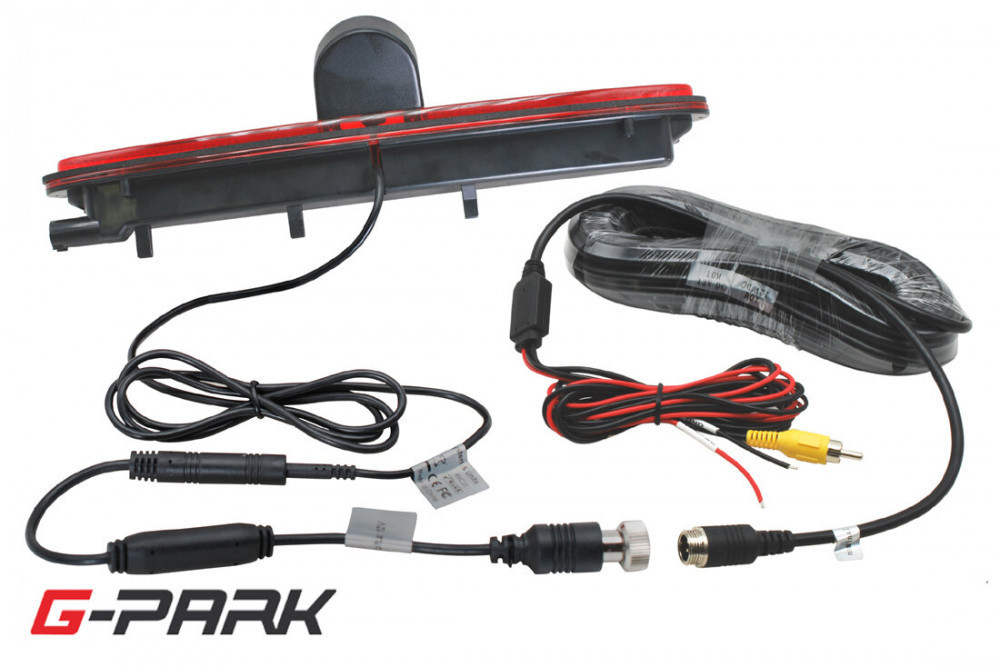

CCD Parking Camera IVECO Daily IV. (11-14) / Daily V. (14->)



OE number: 2 21 858

Weight: 0.5 kg

Manufacturer: G-park

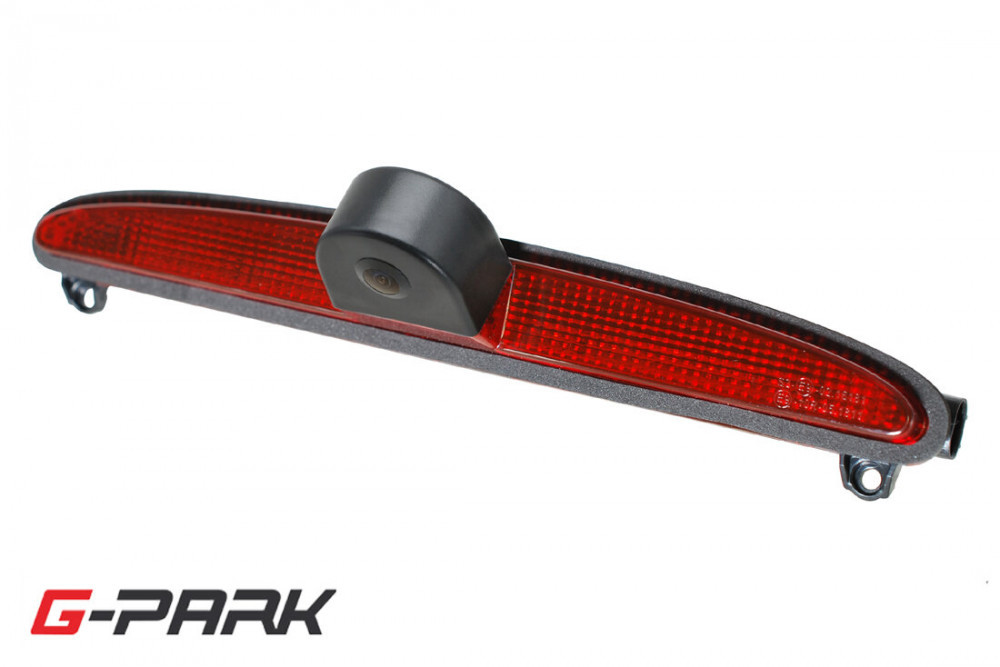

CCD parking camera integrated in the third brake light installed above the rear fenders.



Suitable for cars:
IVECO Daily IV. (2011-2014)
IVECO Daily V. (2014->)
Only for cars with a box body equipped with the original 3rd brake light.

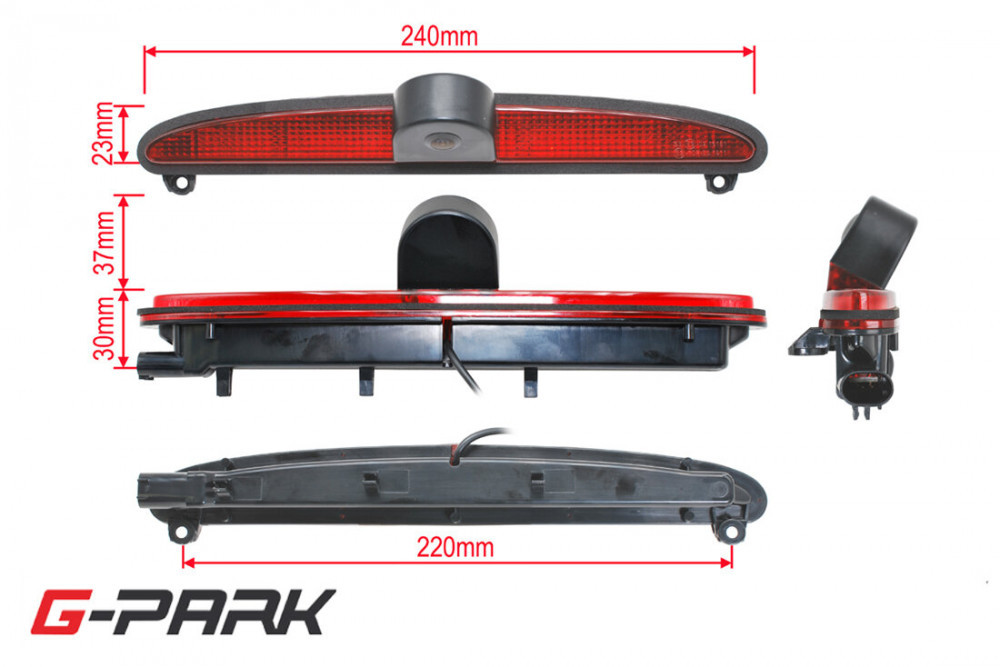

Please check the brake light dimensions before ordering.



Installation in a car:

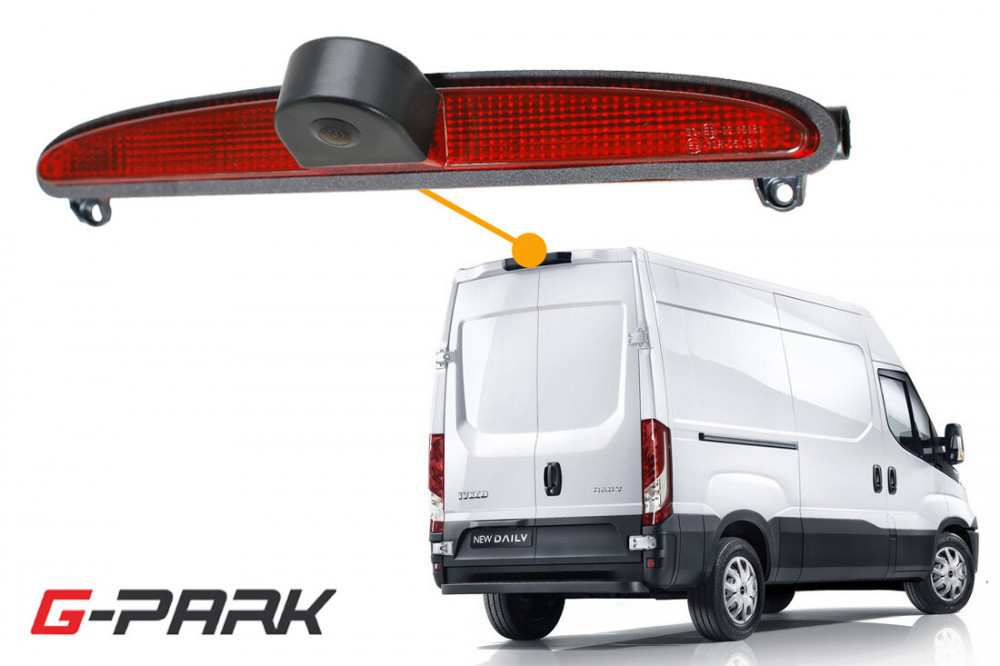

The camera is integrated in the third brake light located in the rear door, which replaces the original brake light. Light signaling is provided by an LED light connected to the original connector.



Homologation:
FCC, CE, E-mark, ISO9001, TS16949, RoHs



Function
NTSC TV standard
CCD sensor

Technical parameters
- CCD 1/3" sensor chip
- diameter of the built-in lens: f: 2.8mm
- TV system: NTSC
- video output: 1.0V /75Ohm
- scanning angle: 170°
- weather protection: IP69K
- resistance to withdrawals: 10G
- camera connector: 4 pin screw
- connector on the monitor side: CINCH (RCA)
- camera cable length: 0.8m
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatic
- minimum lighting: 0.1LUX
- signal/noise ratio: >48dB
- electronic aperture: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- working temperature from -30°C to +70°C
