OE number: 2 21 991 CMVT
Weight: 0.5 kg
Manufacturer: G-Park

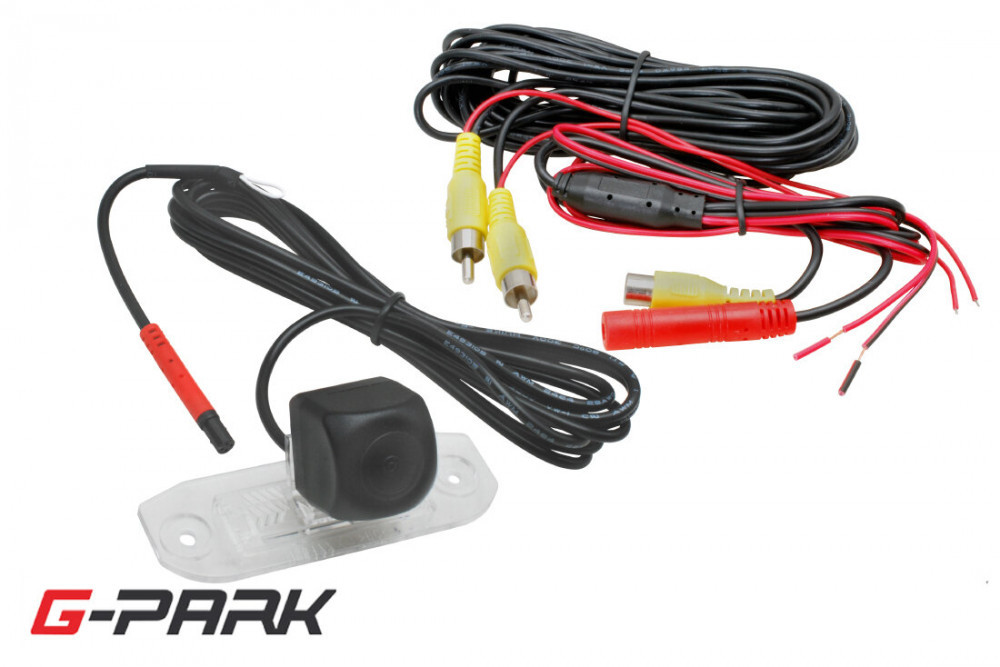

CMOS parking camera for installation in the rear license plate lamp. The lighting of the license plate is provided by the original light. Installing the camera only replaces the transparent cover of the original light
Suitable for cars:
VOLVO S40 (2004->)
VOLVO V50 (2004->)
VOLVO V60 (2010->)
VOLVO V70 (2007->)
VOLVO S80 [AS] (2006-2009)
VOLVO XC60 (2008->)
VOLVO XC70 (2008->)
Function
NTSC TV standard
CMOS sensor
RZ lighting with an original bulb
NTSC TV standardCMOS sensorRZ illumination with an original bulb
Technical parameters
- sensor chip: CMOS
- lens diameter 19mm
- displays auxiliary trajectories (guide lines) on the monitor for orientation during parking (optional function)
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio: >48dB
- TV system: NTSC
- number of TV lines: 600
- resolution: 580 x 492 pixels
- weather protection: IP68
- scanning angle: 120°/ 170°
- video output: 1.0V /75Ohm
- white balance: automatic
- working temperature from -20°C to +70°C
- signal cable length 7m terminated with CINCH connectors
- power cable length 1m
- power supply: 12V DC
- consumption: <1W
